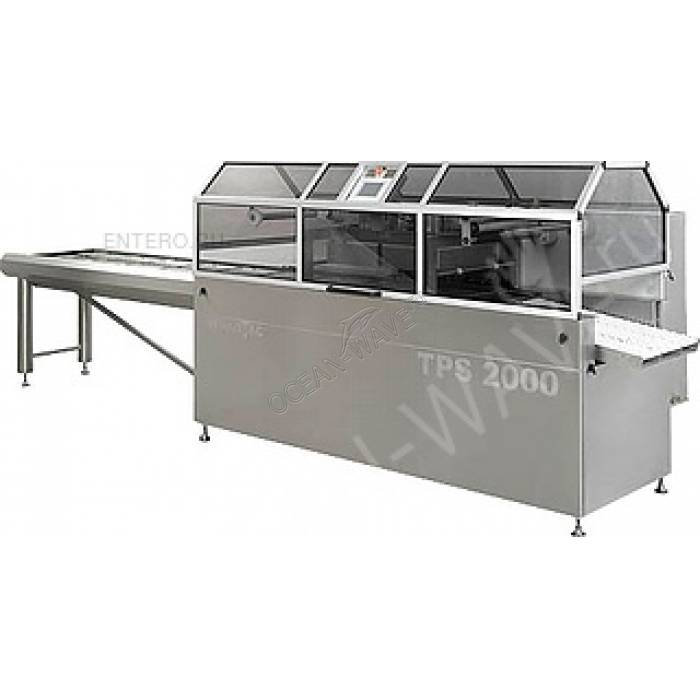

Запайщик лотков Henkovac TPS 2000

Tray sealer, Henkovac TPS 2000 is used in the food industry and trade for automatic vacuum packaging of containers with finished products or semi-finished products and sealing the upper open part of the container film, followed by circumcision. The container with the product installed on a feed conveyor manually. After the end of the cycle Packed the container goes on the outlet conveyor.

The body is made of stainless steel. Automatic document feeder container is installed separately.

Features:

• The function of gas filling process of filling the product container with an inert gas or mixture of inert gases to increase the shelf life of the product or prevent deformation of the product in vacuum packaging
• 2 independent chambers for the simultaneous use of different container formats
• Full automatic control of each stage of packaging
• Vacuum pump Busch (Germany)
• Easy replacement of the form of the matrix
• The possibility of using various types of substrates
• Easy operation

Features:

• Max. container size: HH mm
• Capacity: from 4 to 10 cycles/min.
• Cycle time: 10 to 15 sec.
• Pump capacity: 160 m3/h
• Air pressure: 6 bar
• Max. top film width: 450 mm
• Max. roll diameter: 440 mm
• The inner diameter of the sleeve of the roll: 76 mm
• Voltage: 380 V
• Power: 10,0 kW
• Dimensions: mm HH
• Weight: 1100 kg

Accessories (to be ordered separately):

• Motorized outlet conveyor
• The increase of the feed conveyor 1 m
• Sensor photolabel
• To cut off moisture (of the filter)
• Kislorodozawisimae vacuum pump Busch capacity of 160 m3/h
