Установка просеивания муки СЭМЗ УПМ-1,5

Installation of flour bolting SEMP UPM-1,5 is used in the baking industry for continuous controlled sifting of wheat and rye flour varieties, mechanization of the process of separation of flour from foreign objects, loosening and aeration of the flour. The machine consists of hopper, mucoproteins W2-HMV and drive. The model is equipped with rare earth magnets, service life is 12 years since the release of mucoproteins.

Flour feeding occurs in the hopper. The separator shaft rotates in the bearing supports, tolerates flour with the help of the auger to the sieve. At the outlet of the sifter installed magnets that catch metal particles. Waste outlet is through the pipe, to which you can attach bag to collect waste. For ease of maintenance in the upper part of the housing is a cover.

In the delivery set includes a mesh of carbon steel with a cell size of 3 mm.

Features:

• Nominal capacity: 1500 kg/h*
• Volume of the hopper: 0,1/100 m3/l
• Screen area: 0.2 m2
• Possible mesh: 2-4 mm
• Humidity flour sieve, not more than 15%
• Voltage: 380V +5%-10%
• Installed drive power: 0,75 kW
• Dimensions: mm HH
• Weight: 200 kg

Accessories (to be ordered separately):

• Vibrator for hopper
• Framework the agitator for the hopper
• Manual tipper bags fixed in the upper position

* Performance depends on the size of the mesh cell, the type of screen, variety of flour and its moisture content.

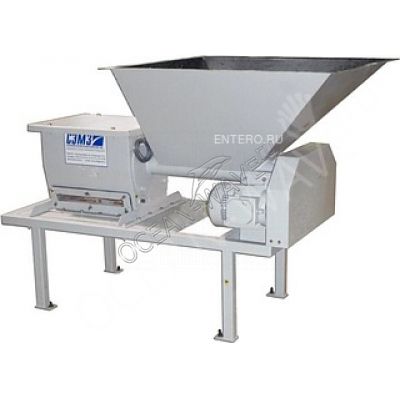

Attention! Pictured is similar model of a different size.
