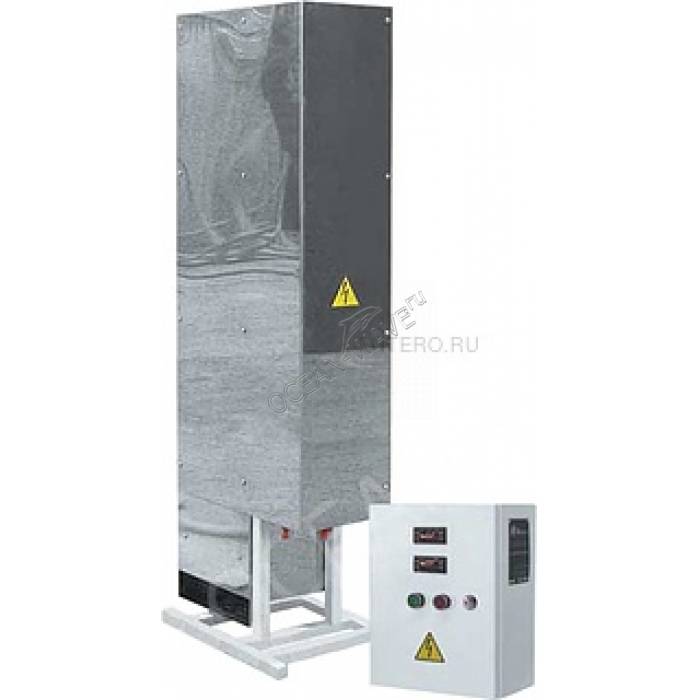

Installation of microclimate Sunrise is intended for creation and automatic maintenance of specified values of temperature and humidity chambers in the final proofing of the dough pieces does not exceed 10 m3 in the food industry, bakeries and pastry shops. The model consists of climator, stand and remote electrical Cabinet with control panel. The body of climator made of stainless steel.

Features:

• Work in automatic mode
• Controls "Elivell" set and accurately maintain the temperature and humidity in the chamber
• The recirculation fan provides fresh air
• Does not require special installation
• Climator mounted on a rack, placed in a cell final proofing dough pieces and connects to the water supply system
• Electric Cabinet with control panel mounted in a convenient location on the wall out of the final proofing chamber and connected with the electric cable climatogram

Additional features:

• The maximum volume of the chamber proofing: 10 m
• Relative humidity: from 60% to 90%
• The heating time of the chamber volume of 10 m3 to 40 °C: 30 min.
• Overall dimensions climator: 444x404x1870 mm
• Dimensions of control Cabinet: 300x220x665
• Climator weight: 50 kg
• The weight of the control Cabinet: 30 kg
