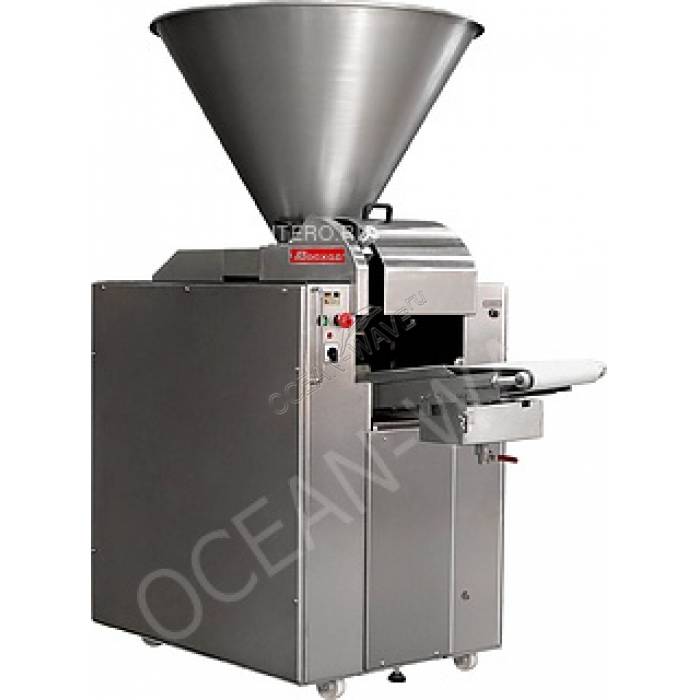

Тестоделитель Восход ТД-4

Dough divider Voskhod TD-4 is used by small public catering enterprises, bakeries and confectionary for dividing dough pieces. Details of the dividing mechanism is made from alloyed (stainless) cast iron having a high wear resistance. The body is made of stainless steel. The mechanism of the divider is separated from the treatment area of the test, which eliminates the ingress of dough on parts and assemblies of the actuator.

Features:

• Point automatic lubrication system
• The system of locks
• The system of wetting the tape
• Frequency drive with display
• Height adjustable conveyor
• Conveyer belt
• Removable hopper
• Plunger pump
• Castor

Features:

• Performance: 540-1250 PCs/h
• Weight of dough pieces:
  • 0.1 to 1.0* kg
  • 0,15-1,0** kg
• Hopper capacity: 180 kg
• The relative error in division:
  • Dough pieces weight 0.2 kg: ±3%
  • Dough pieces weighing more than 0.2 kg: ±2%
• Oil consumption at 500 cycles: 320 ml.
• Voltage: 220V
• Rated power: 1 kW
• Dimensions: h/h mm
• Weight: 600 kg

* For wheat and rye-wheat flour with a content of rye flour 50% ** For rye-wheat flour with a content of rye flour less than 70%
