Тележка для гастроемкостей ATESY ТГ-1

Truck ATESY TG-1 used to transport type GN containers GN 1/1 and GN-1/2 of the kitchen space to the lines of distribution of ready meals and back. The product is designed for use on public catering establishments, including establishments with self-service system.

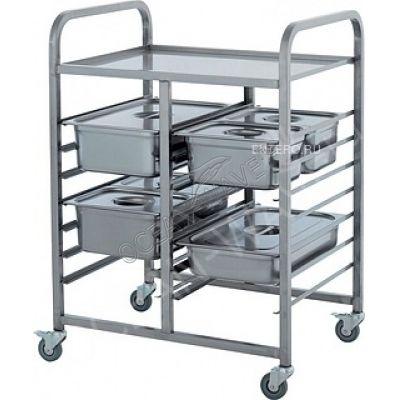

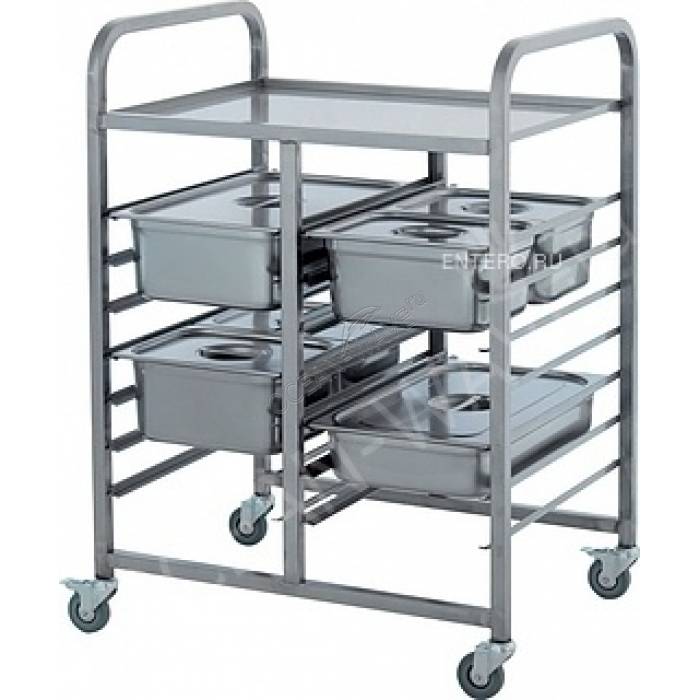

The trolley is a welded frame shelf structure containing guides, which in various combinations can be set Gastronorm containers. All guides are equipped with end flanges that provide fixation of GN containers and prevent their loss. In the top of the product is a convenient shelf with rim.

Motion carried with four swivel wheels, one of which is equipped with a brake. All construction is made of stainless steel AISI 304.

Features:

• Number of levels: 7 no.
• Designed for Gastronorm containers GN-1/1 (HH or HH) and GN 1/2 (HH or HH)
• Max. load on horizontal bearing elements of the same level: 20 kg
• Max. total load: 150 kg
• Dimensions top shelf: h mm
• Rim height top shelf: 15 mm
• The distance between the rails height: 100 mm
• The frame of square section: 25x25 mm
• Wheel diameter: 75 mm
• Dimensions: mm HH
• Weight: 21,7 kg
