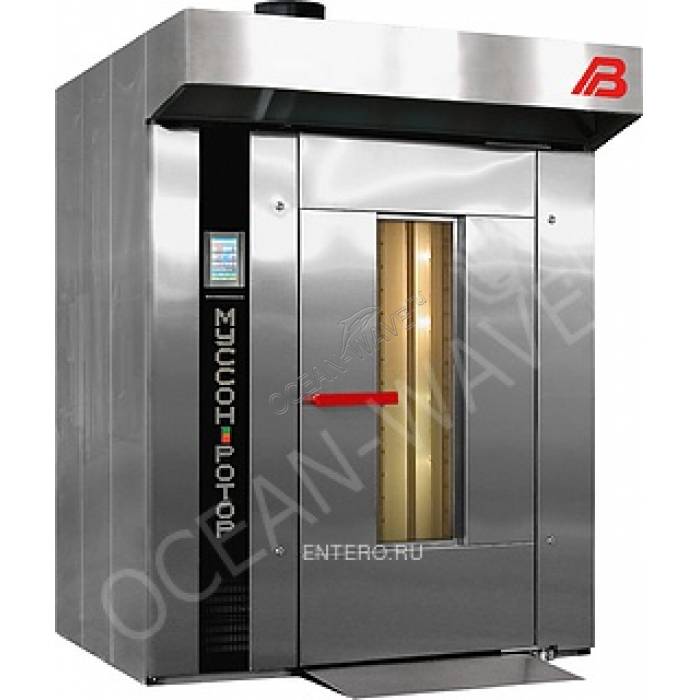

Печь ротационная Восход Муссон-ротор 77М-01

Rotary oven Sunrise monsoon-rotor 77M-01 is used in the food industry, bakeries and confectionary for bakery and confectionery products. The structure is made of stainless steel. Control system the furnaces are built on the microprocessor controller with the use of start-control devices of domestic and foreign production, ensures minimum maintenance and high reliability.

In the scope of delivery includes a set of spares.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• The maximum range of control functions
• 100 baking programs
• Adjustment programs during baking
• Indication of direct and countdown baking

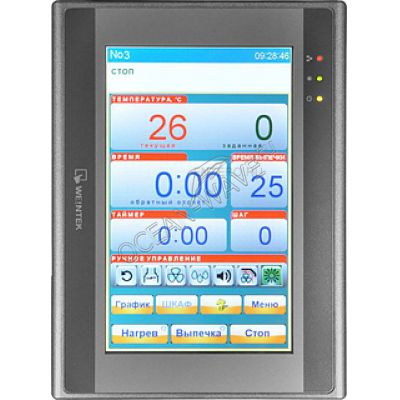

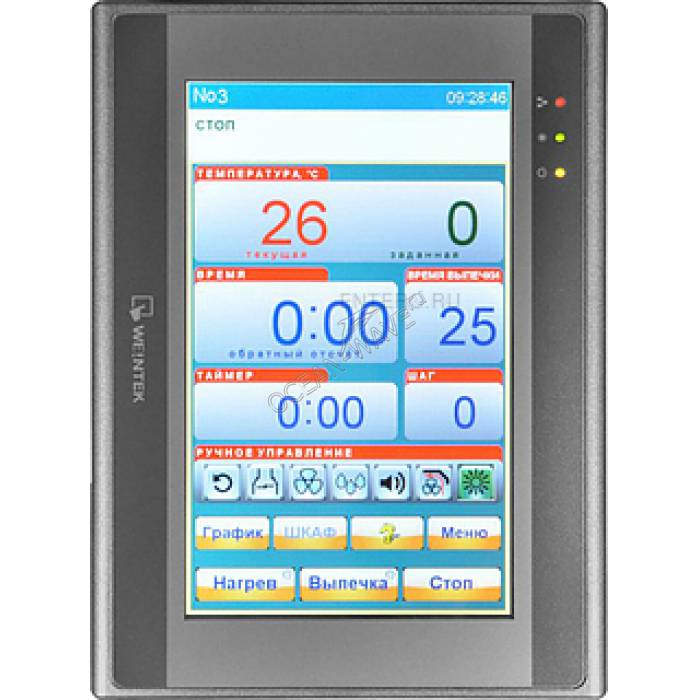

• The display of graphical and textual information about modes of operation, emergency situations and produce manipulations on the big screen
• The frontal position of the service area allows you to set the furnace in rows, with a minimum clearance of 5 cm
• Top drive rotation shelf trolleys
• High load capacity bearing Assembly
• Reverse rotation of the truck
• Air circulation with centrifugal fan
• Option "predesigned"
• System steam tray-type
• Exhaust fan
• Automated burner block "ELCO"
• Management system launch and operation of the burner
• 2-layer insulation
• Self-orienting the thrust bearing
• Door with 2-level adjustable locks and hinges

Additional features:

• Performance in 1 cakes:
  • Bread when using cassettes L: 135*
  • Bread when using cassettes L: 150**
  • Baton (0.5 kg 6 PCs on 1 sheet): 96***
  • Baton 0.3 kg (8 pieces on 1 sheet): 144*
  • Consumer products 0.15 kg (16 pieces on 1 sheet): 288*
• The heating time to a temperature of 250 °C: 20 min.
• Maximum flow****:
  • Gas: 6,2 m3/h
  • Liquid fuel: 4.6 kg/h
• Dimensions of pan: 660x600 mm
• The total area of baking: 7,1 m2*
• Nominal thermal capacity: 60 kW

* When using 18-tier shelf trolleys TS-1-18 ** When using a 20-tier rack trolley TC-1-20 (height of finished products is not more than 122 mm) *** When using 16-tier shelf trolleys TC-1-16 **** In continuous operation of the burner
