Печь ротационная Восход Муссон-ротор 55-01

Rotary oven Sunrise monsoon-rotor 55-01 used in the food industry, bakeries and confectionary for bakery and confectionery products. All-welded construction made of stainless steel. Control system the furnaces are built on the microprocessor controller with the use of start-control devices of domestic and foreign production, ensures minimum maintenance and high reliability.

In the scope of delivery includes a set of spares.

Features:

• The maximum range of control functions
• 100 baking programs
• Adjustment programs during baking
• Indication of direct and countdown baking

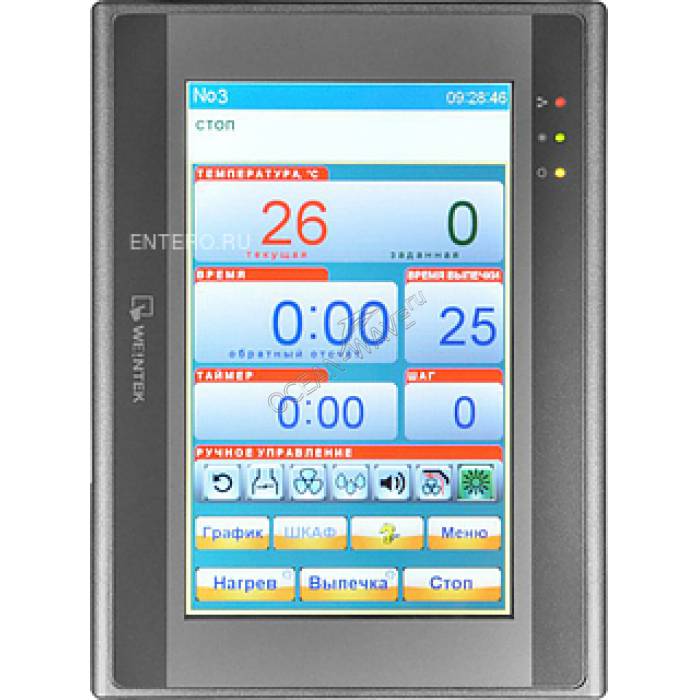

• The display of graphical and textual information about modes of operation, emergency situations and produce manipulations on the big screen
• The frontal position of the service area allows you to set the furnace in rows, with a minimum clearance of 5 cm
• The possibility of transition from gas (diesel) to electricity by replacing the Tubular heat exchanger on the block
• Top drive rotation shelf trolleys
• High load capacity bearing Assembly
• Reverse rotation of the truck
• Air circulation with centrifugal fan
• Option "predesigned"
• System steam tray-type
• Exhaust fan
• Block automated burner "RIELLO"
• Management system launch and operation of the burner
• 2-layer insulation
• Door with 2-level adjustable locks and hinges

Additional features:

• Performance in 1 cakes:
  • Bread wheat, rye-wheat (bread form # 7, 10): 90**
  • Loaf 0.5 kg (4 pieces on 1 sheet): 64*
  • Baton 0.3 kg (6 pieces on 1 sheet): 108**
  • Bakery products weight of 0.15 kg (12 PCs. on the baking sheet): 216**
• Capacity:
  • Bread form No. 7, and 10: 90***
  • Trays (size h mm): 18***
• The heating time to a temperature of 250 °C: 30 min.
• Maximum flow:
  • Gaseous fuels: 5.1 m3/h
  • Liquid fuels: 3.8 kg/h
• Water consumption per cycle steam: 5 l
• The total area of baking: 4.86 m2***
• Nominal heat output: 45 kW
• Dimensions of dismantled equipment: HH mm

* When using 16 tier shelf trolleys. ** When using tier 18 shelf trolleys. Download pan bread 90 PCs/pastries (bread of the form №7, 10), are based on applying a special shelf trolleys with cassettes bread forms 5 No. 7 (5 No. 10). With standard rack truck loading molded bread is 54 pieces/cakes using cassettes of bread shapes 3 No. 7(3 No. 10). *** The capacity and size of the pastries are 18 tier shelf trolleys
