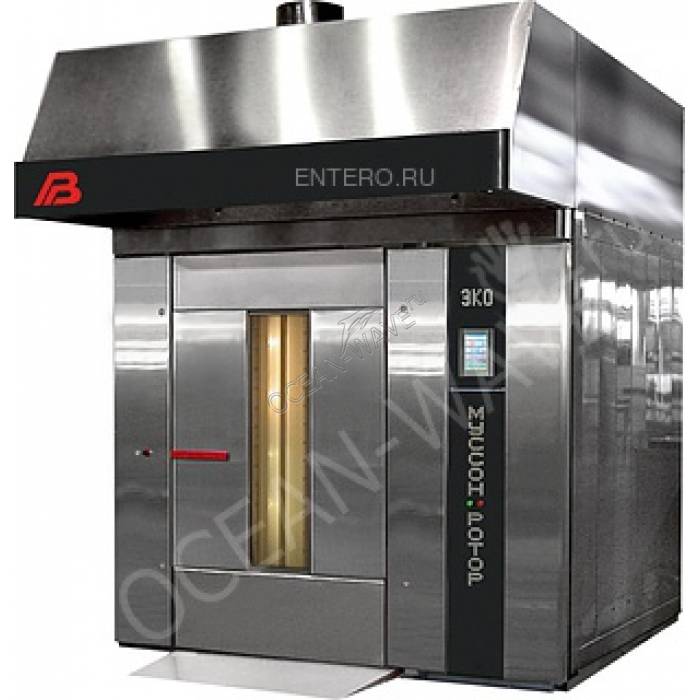

Печь ротационная Восход Муссон-ротор 350 (В325.00.00.000)

Rotary oven Sunrise monsoon-rotor 350 is used in the food industry, bakeries and confectionary for bakery and confectionery products. Furnace and heat exchanger are made of heat-resistant high alloy steel; the lining of the furnace, zone, threshold, ceiling of the baking chamber - stainless steel.

In the scope of delivery includes a set of spares.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• Microcontroller based control system with touch operator panel SIMATIC TP170 SIEMENS
• 100 baking programs
• Adjustment programs during baking
• Indication of direct and countdown baking
• The display of graphical and textual information about modes of operation, emergency situations and produce manipulations on the big screen
• Setting passwords
• Storage of archives
• The frontal position of the service area allows you to set the furnace in rows, with a minimum clearance of 5 cm
• Top drive rotation shelf trolleys
• High load capacity bearing Assembly
• Reverse rotation of the truck
• Air circulation with centrifugal fan
• Option "predesigned"
• The function "delayed start"
• Remote unlocking burners
• System steam
• Automated burner block "ELCO"
• Management system launch and operation of the burner
• 2-layer insulation
• Door with 2-level adjustable locks and hinges

Additional features:

• Capacity shelf trucks: 2
• Performance in 1 cakes:
  • Bread when using cassettes L: 288**
  • Bread when using cassettes L: 288**
  • Baton 0,5 kg (11 pieces on 1 sheet): 352**
  • Baton 0.3 kg (13 pieces on 1 sheet): 468****
  • Consumer products 0.15 kg (28 pieces on 1 sheet): 1008**
• The heating time to a temperature of 250 °C: no more than 25 min.
• Maximum flow:
  • Gas: 19 m3/h
  • Liquid fuel: 14.5 kg/h
• Water consumption per cycle steam: 12 l
• Dimensions of pan: 580x980 mm
• The total area of baking: 20,46 m2**
• The ceiling height in the room: not less than 4 m
• Nominal thermal power: 160 kW

* Rack trolley TC-2 (tray h). ** When using 18-tier shelf trolleys. *** When using a 20-tier rack trolley TC-8-R-20 (height of finished products is not more than 122 mm.). **** When using 16-tier shelf trolleys. ***** In continuous operation of the burner.
