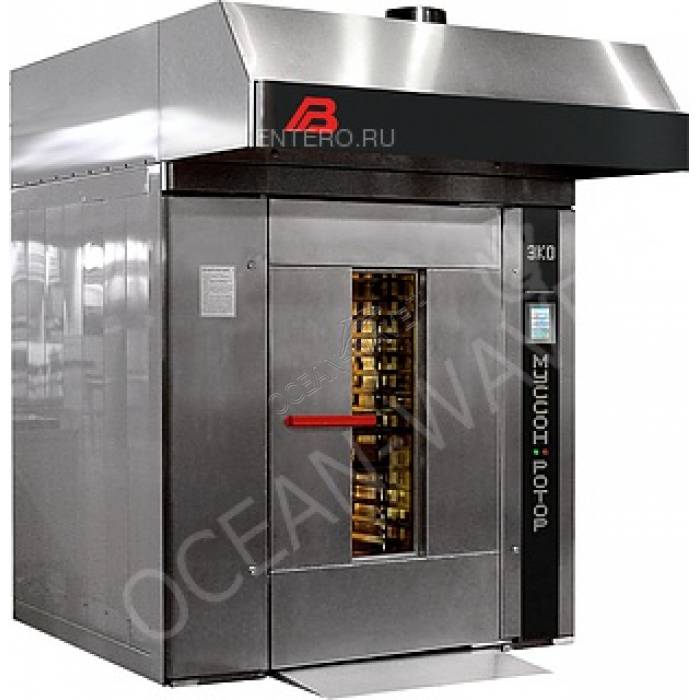

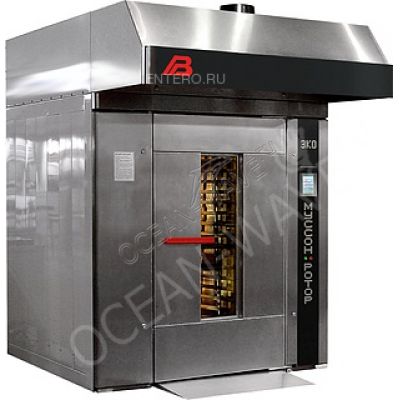

Печь ротационная Восход Муссон-ротор 250МР Супер

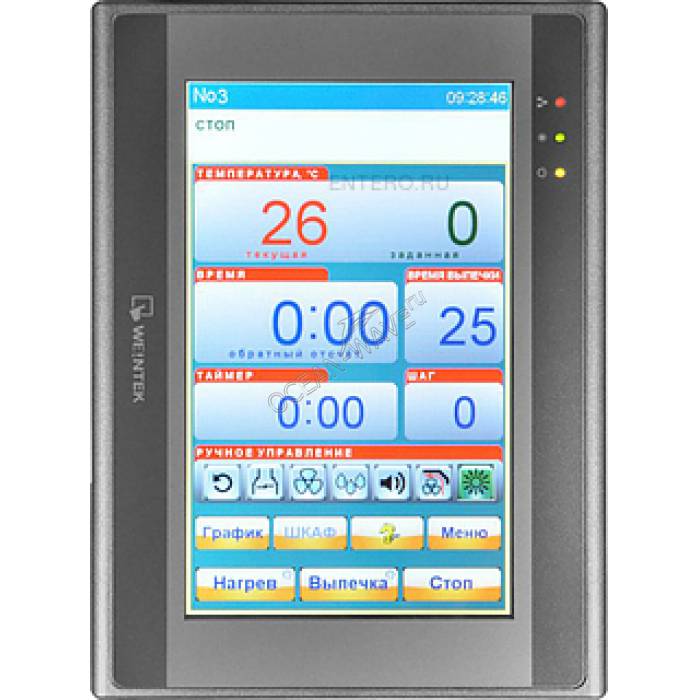

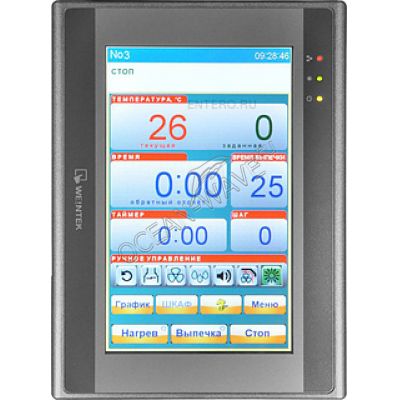

Rotary oven Sunrise monsoon-rotor MR Super is used in the food industry, bakeries and confectionary for bakery and confectionery products. Lining, furnace door, the walls, the ceiling, the threshold of the baking chamber made of stainless steel. Control system the furnaces are built on the microprocessor controller with the use of start-control devices of domestic and foreign production, ensures minimum maintenance and high reliability.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• 3-way design of the heat exchanger with counterflow
• Air circulation with centrifugal fan
• System steam tray-type
• The water strainer
• Pressure reducing valve with pressure gauge
• System prodlenie
• Rotating platform
• High load capacity bearing Assembly
• Top drive rotation shelf trolleys
• Protection of the rotary drive shelf trolleys
• Reverse rotation of the truck

Additional features:

• Capacity shelf trucks: 1
• Performance in 1 cakes:
  • Bread using bread shapes L7: 270**
  • Bread using bread forms L: 270**
  • The baton of 0.5 kg (16 pieces on 1 sheet): 288**
  • Baton 0.3 kg (12 PCs. for 1 tray): 192****
  • Consumer products 0.15 kg (35 pieces on 1 sheet): 630**
• The heating time to a temperature of 250 °C: 20 min.
• Maximum flow:
  • Gas: 12,5 m3/h
  • Liquid fuel: 9,3 kg/h
• Water consumption per cycle steam: 9 l
• Dimensions of pan: 1100x750 mm
• The total area of baking: 14,85 m2**
• The ceiling height in the room: not less than 3.5 m
• Nominal thermal power: 110 kW

* Rack trolley TC-2 (tray h). ** When using 18-tier shelf trolleys. *** When using a 20-tier rack trolley TC-8-R-20 (height of finished products is not more than 122 mm.). **** When using 16-tier shelf trolleys. ***** In continuous operation of the burner.
