Печь люлечная Восход Циклон-ротор 240Р

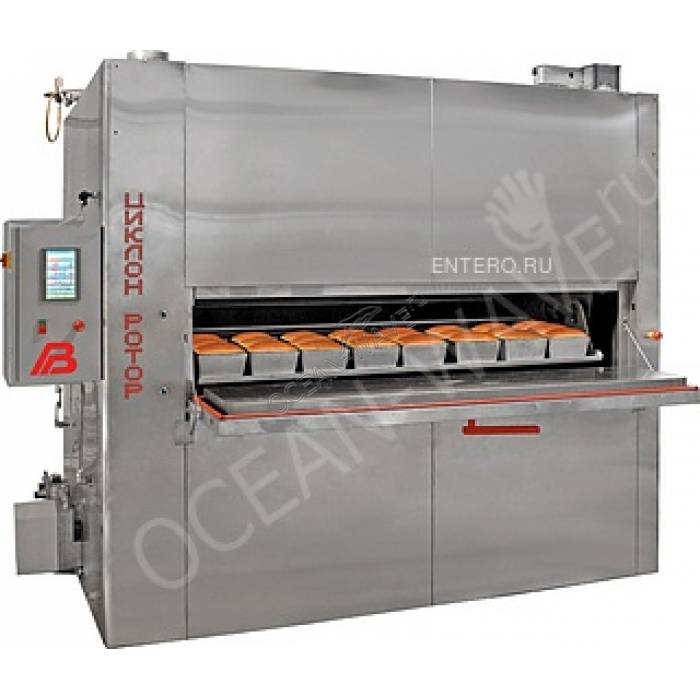

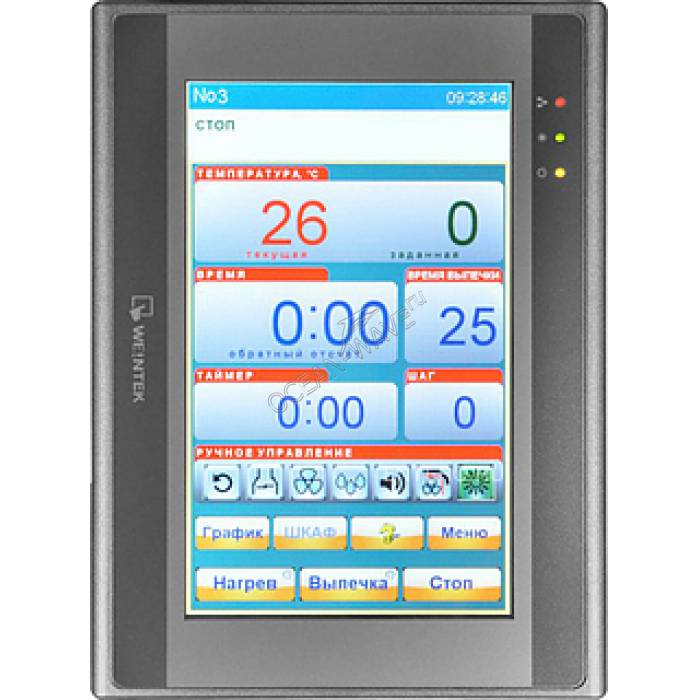

Cradle oven Rise Cyclone-rotor 240R is used in the food industry, bakeries and pastry to baking pan and hearth breads, bakery products, pastries and confectioneries. The furnace control system is built up on basis of microprocessor controller and color touch operator panel with the use of start-control devices of domestic and import production, which provides a simple, time-minimal maintenance, high reliability in operation.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• The maximum range of control functions
• 100 baking programs
• Adjustment programs during baking
• Indication of direct and countdown baking
• The display of graphical and textual information about modes of operation, emergency situations and produce manipulations on the big screen
• Low fuel consumption
• Rapid heating to operating temperature

Additional features:

• Performance in 1 cakes:
  • Bread wheat, rye-wheat (bread form # 7, 10): 240
  • Baton 0.3 kg (4 PCs. on the baking sheet): 120
• Capacity:
  • Bread tins № 7, 10: 240
  • The pans (flat size: measures 300x600 mm): 30
• The heating time to a temperature of 250 °C: 45 min.
• Maximum flow:
  • Gaseous fuels: 8.5 m3/h
  • Liquid fuels: 6.8 kg/h
• Water consumption per cycle steam: 4-6 l
• Baking area: 5.4 m2
• Nominal thermal output: 75 kW
