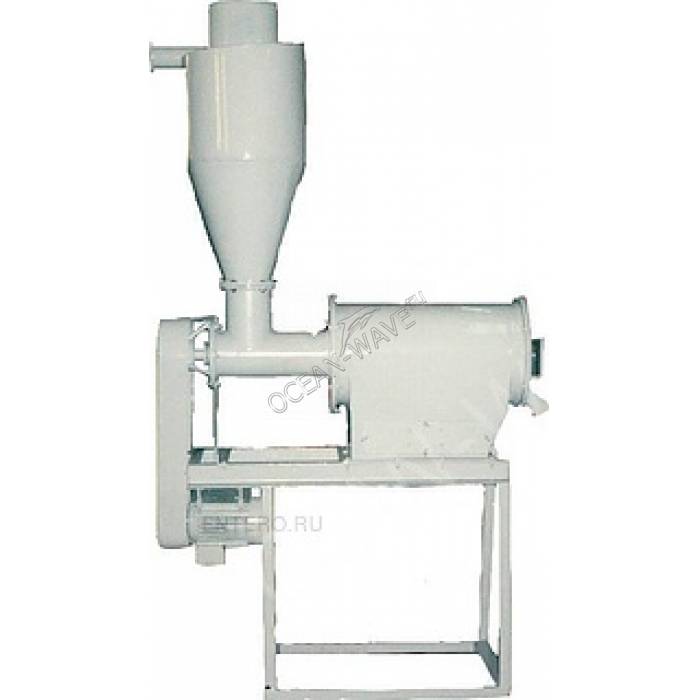

Мукопросеиватель СЭМЗ Ш2-ХМВ-03 с циклоном на раме

Mucoperiostal SEMP W2-HMV-03 is used in the baking industry for the controlled continuous sifting of the flour of wheat and rye varieties. The equipment consists of separator, the drive motor, and a cyclone frame. The model is equipped with rare earth magnets, service life is 12 years since the release of mucoproteins.

Once in the cyclone flour is deposited on the conical part and into the sifter, a shaft which rotates in bearing supports, tolerates flour with the help of the auger to the sieve. The screw is made with a variable step to education in it pastry tube, to prevent air from the cyclone into the sifter. Inside the rotating sieve of the race, informing the flour axial and radial movement relative to the sieve. At the outlet of the sifter installed magnets that catch metal particles. Waste outlet is through the pipe, to which you can attach bag to collect waste. For ease of maintenance in the upper part of the housing is a cover.

In the delivery set includes a mesh of carbon steel with a cell size of 3 mm. On request, the sieve and the material can be changed, and the type of sieves on a sheet of expanded metal.

The equipment is similar to the qualitative equipment and ingredients from Borat VM-6A and Voronezh-2.

Features:

• Capacity: up to 6000 kg/h*
• Screen area: 0,54 m2
• Possible mesh: 2-4 mm
• Installed drive power: 1.1 kW
• Dimensions: mm HH
• Dimensions with frame and cyclone: HH mm
• Weight:
  • Mucoperiostal: 190 kg
  • Cyclone: 30 kg
  • Frame: 30 kg

* Performance depends on the size of the mesh cell, the type of screen, variety of flour and its moisture content.
