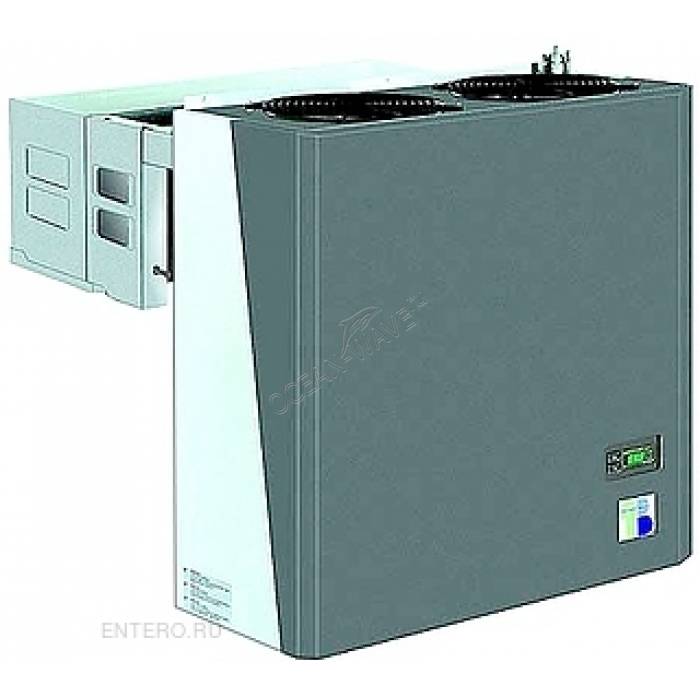

Моноблок Technoblock АСK 202

Low-temperature refrigeration monoblock Technoblock ASC 202 is intended for cooling the total volume of refrigerating chambers in production.

General data

• The valid range of ambient temperatures from 0°C to +45 °C
• Package size: 870x930x930 (h) mm
• Number of phases: 3
• Current frequency: 50 Hz
• the permissible deviation not more than +/- 12%
• Refrigerant R404a, the normal charging 1 kg

The compressor

• Firm: Maneurop
• Type: sealed
• Model: LTE22JE4
• Power: 2 HP

Capacitor

• Copper tube with aluminum fins
• Step edges 3.2 mm, surface area: m2 8,9
• The number of 2 fans, diameter 254 mm
• The engine power of 73 watts
• Capacity: 2160 m3/h

Air cooler

• Defrost type: gas
• Copper tube with aluminum fins
• Step edges 4.2 mm, surface area: 7,8 m2
• Number of fans 2 diameter 200 mm
• Engine power 31 watt
• The performance of 1070 m3/h
• Throw length: 5 m

Electrical cables

• External 5 x 1.5 mm2
• Lighting camera 3 x 1.0 mm2
• Heated door 3 x 1.0 mm2
