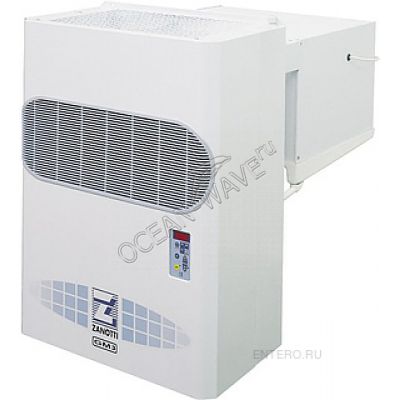

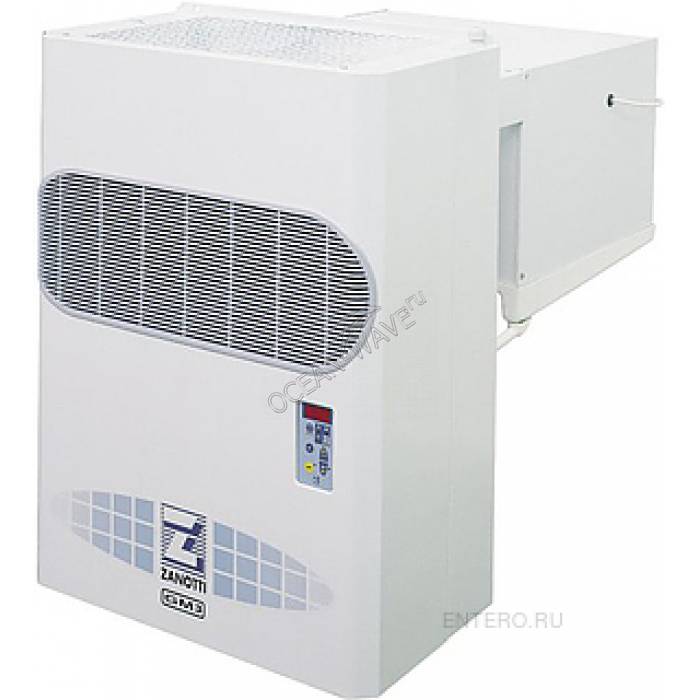

Моноблок среднетемпературный Zanotti MGM320 201F

Monoblock Zanotti MGM320 201F is designed to maintain the required temperature in the refrigeration chambers of small and medium volume. The all-in-one wall mounting type and equipped with a hermetic compressor and will be charged with the refrigerant R404A.

The device is equipped with a monitor protect that can protect the control unit and the compressor from damage in the event of voltage drops in excess of allowable range.

All medium-Zanotti monoblocks are designed to maintain the temperature in the chamber to +10 °C. the Cooling capacity and volume of the chamber is specified at ambient temperature +30 °C.

Advantages:

• Quick installation and setup
• Efficiency when using
• Necessary standard equipment for easy maintenance

Standard equipment:

• Compressor hermetic
• Filter drier
• Built-in power management
• Power cable - 3 m
• Lighting cable - 1 m
• The light
• Cable light switch - 3 m
• Expansion by capillary tube
• The condensate removal system
• Defrost hot gas
• Disabling the control panel

Additional options:

• Winter set
• Remote

Additional features:

• The performance of the capacitor: 1500 cubic m/h
• Performance of unit cooler: 1800 cubic m/h
• The length of the air flow of evaporator: 9.5 m
• Amperage: 4,9 A
• Rated power: 1.5 kW E

The volume of refrigerating chambers are matched for the following conditions:

All refrigerating machines commercial series is filled with refrigerant.

If the condensing unit of the refrigeration machine is installed:
