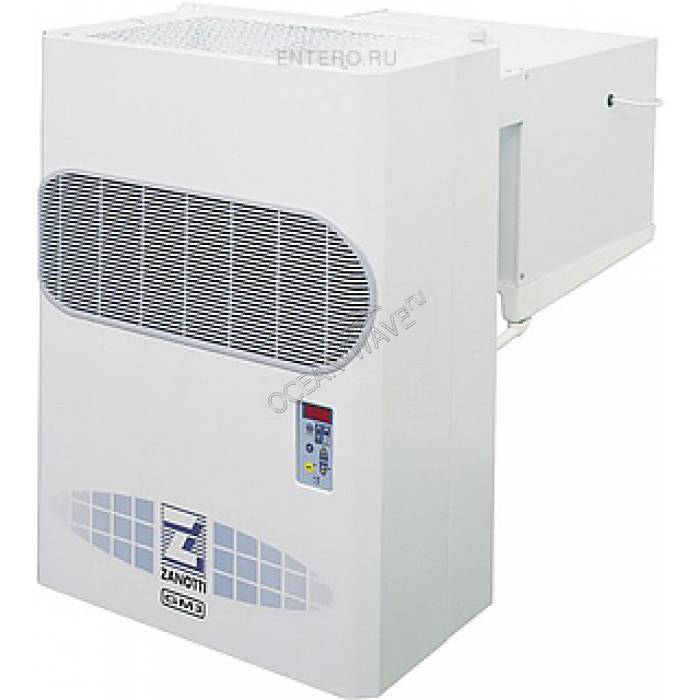

Моноблок низкотемпературный Zanotti BGM340 201F

Monoblock Zanotti BGM340 201F is designed to maintain the required temperature in the refrigeration chambers of small and medium volume. The all-in-one wall mounting type and equipped with a hermetic compressor and will be charged with the refrigerant R404A.

The device is equipped with a monitor protect that can protect the control unit and the compressor from damage in the event of voltage drops in excess of allowable range.

The cooling capacity and volume of the chamber is specified at ambient temperature +30 °C.

Advantages:

• Quick installation and setup
• Efficiency when using
• Necessary standard equipment for easy maintenance

Standard equipment:

• Compressor hermetic
• Filter drier
• Built-in power management
• Power cable - 3 m
• Lighting cable - 1 m
• The light
• Cable light switch - 3 m
• Expansion by capillary tube
• The condensate removal system
• Defrost hot gas
• Disabling the control panel

Additional options:

• Winter set
• Remote

Additional features:

• The performance of the capacitor: 2200 cu. m/h
• Performance of unit cooler: 2100 cubic meters/h
• The length of the air flow of evaporator: 9.5 m
• Current: 6,4 A
• Rated power: 2,9 kW E

The volume of refrigerating chambers are matched for the following conditions:

All refrigerating machines commercial series is filled with refrigerant.

If the condensing unit of the refrigeration machine is installed:
