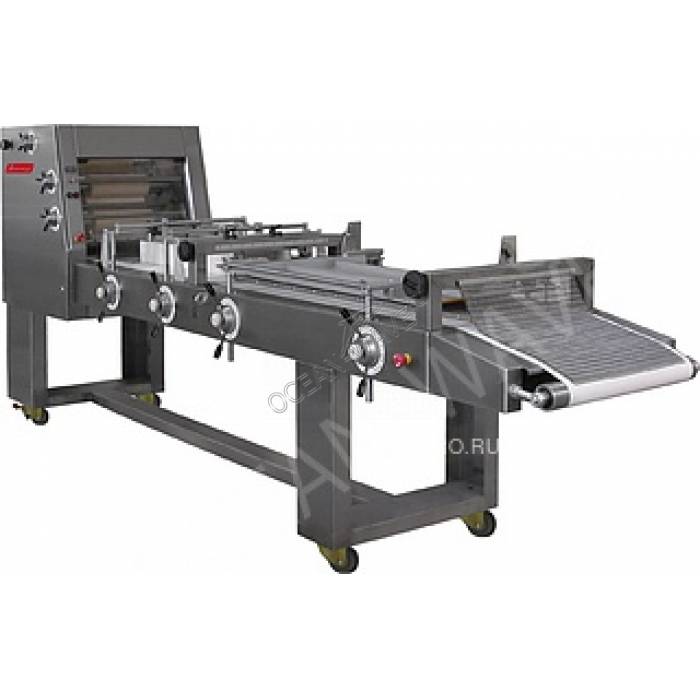

Машина тестозакаточная Восход ТЗ-6

Testoserone machine the rise of the TK-6 is used in the food industry and public catering, bakeries and confectionery for giving the test workpieces of cylindrical shape. After rounding, it is advisable to produce a preliminary proofing dough pieces for producing high quality products. Plate final seaming is folded and is equipped with gas springs to compensate the weight of the sealing plate and lock it into the raised position for ease of cleaning and maintenance. The body is made of stainless steel; rolling out rollers and the rollers of the centering, the side guides is made of a polymer material.

3 stages of rolling out dough:

• Between the feed conveyor and the pressing roller
• The first pair of rollers
• The second pair of rollers

The machine includes a removable closing plate in two sizes in width for pre-rolling of the dough pieces.

In the scope of delivery includes a set of spares, tools and accessories kit.

The equipment is delivered unassembled. Installation and commissioning performed by qualified personnel. The cost of work is calculated individually.

Features:

• The centering mechanism
• Romanobritish
• 2 sealing plate
• The system of locks
• 3 button "Emergency stop"
• Locking switches
• Adjusting the speed of the tape and rolled the rollers
• Gap adjustment between rollers raskatyi
• Gap adjustment between the clamping plates and the conveyor belt
• Rolled rollers with scrapers
• Sensor account dough pieces
• Arm with indicator
• Handwheel with Vernier
• Multilayer seamless conveyer belt
• Transparent flip cover
• 4 swivel castors, 2 of which with brakes
• Adjustable height support

Features:

• Capacity: 3600 pieces/HR
• Weight of dough pieces: 0,15-0,8 kg
• Humidity test: 39-44%
• Length of pieces: 500 mm
• The diameter of the dough pieces: 80 mm
• The width of the receiving conveyor belt: 280 mm
• Belt width of the forming conveyor: 550 mm
• The width and the length of interchangeable closing plates: h mm, mm h
• The length of the closing plate final seaming: 1200 mm
• Voltage: 220V
• Rated power: 2.3 kW
• Dimensions: mm HH
• Weight: 540 kg
